Automatic cartoner lines operate either intermittent (indexed) or continuous. Continuous lines are capable of very high box throughput but are expensive and large. On the other hand, intermittent running cartoner machines are compact, cost effective but usually limited to a speed of 150 packs/min what is sufficient for most applications. As next process step, a legally mandated serialization code is inline printed and for European markets a tamper evident label is applied on the product package.

Hicof is the first and only company, offering coding/ labeling lines which work intermittently. The unique, patent applied concept of the Hicof AMACODER is the use of pushers for transporting the boxes through the machine. Therefore, no conventional conveyor is used.

It works as follows: Boxes, coming from an upstream machine e.g. a car¬toner or checkweigher, are transported by a conveyor to the infeed plate of the Amacoder. A feeding pusher from the side shifts incoming boxes lateral¬ly onto the transport slide, in front of a second pusher which shifts the boxes through the Amacoder. After a stroke of the pusher, it retracts to its initial position, leaving room for new boxes, introduced from the side. This cycle is repeated permanently, resulting in an indexed, highly controlled movement of the stack of boxes through the machine.

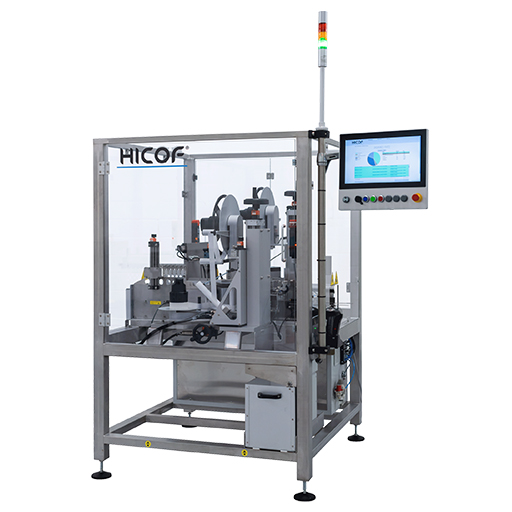

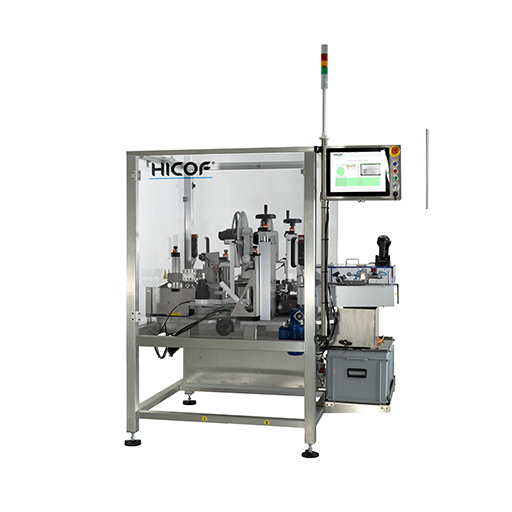

The AMACODER-TE is a proven machine with a wide range of options available. Reaching from checkweigh-er integration to various in-feed and out-feeding options.
