iFeed Friction Feeder
The feeder is design to feed all type of materials such as label, folded box, cardboard/plastic card, laminated pouch, plastic pre-form bag, paper or flexible plastic envelop and all type of suitable materials that can be easily separated by the feeder.
The feed magazine will take up to a stack height of over 200 mm and can accept material thickness from 0.1 – 10 mm.
The design of the feeder conveyor allowed the attachment of CIJ Ink Jet printer, Thermal Ink Jet, Piezo Ink Jet, Labelling machine, Vision Inspection and other types of equipment at speed up to 60m per minute. Various type of option is available such as counter, no materials auto stop, double detection, automatic collation conveyor, vacuum conveyor. Fast and easy changeover of sizes without tools.
The feed magazine will take up to a stack height of over 200 mm and can accept material thickness from 0.1 – 10 mm.
The design of the feeder conveyor allowed the attachment of CIJ Ink Jet printer, Thermal Ink Jet, Piezo Ink Jet, Labelling machine, Vision Inspection and other types of equipment at speed up to 60m per minute. Various type of option is available such as counter, no materials auto stop, double detection, automatic collation conveyor, vacuum conveyor. Fast and easy changeover of sizes without tools.

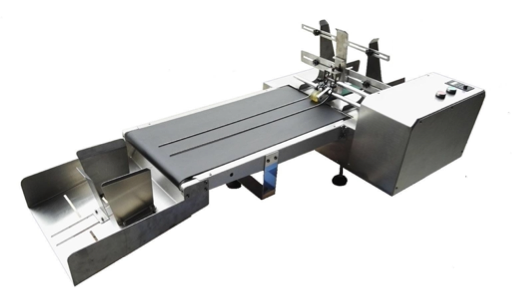

Tabletop Model: TF04-300
Specification
- Product dimension: Width 60 – 300 mm, Length 80 – 300 mm
- Product thickness: 10 – 10 mm
- Conveyor speed: Adjustable up to 60 m/minute
- Voltage: 110V/240V, 50/60Hz, 1ph. 60W
- Dimension: 1000 x 500 x 400 mm
- Weight: 35 kg
Option
Product counter, automatic collection conveyor, extended belt conveyor, barcode reader, vision inspection, reject system, mounting bracket for ink jet printer.

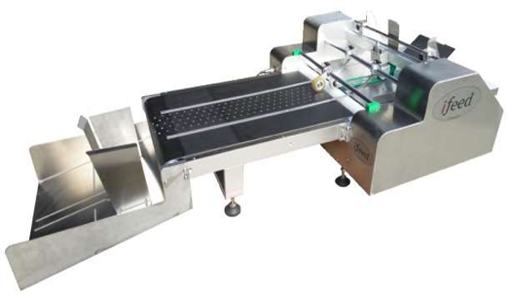

Tabletop Model: TF01-400
Specification
- Product dimension: Width 80 – 400 mm, Length 80 – 400 mm
- Product thickness: 0.10 – 10 mm
- Conveyor speed: Adjustable up to 100 m/minute
- Voltage: 110V/240V, 50/60Hz, 1ph. 60W
- Dimension: 1200 x 700 x 400 mm
- Weight: Approx. 55 kg
Option
Product counter, double detection system, automatic collection conveyor (shingling), extended belt conveyor up to any length, high vacuum belt conveyor, independent motor drive, barcode reader, camera vision inspection, reject system, mounting bracket for ink jet printer, label applicator.

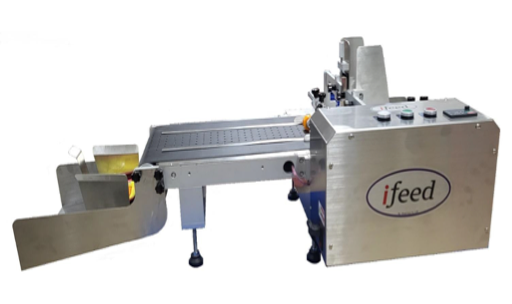

Tabletop Model: TF05-300
Specification
- Product dimension: Width 60 – 300 mm, Length 80 – 320 mm
- Product thickness: 0.05 – 10 mm
- Conveyor speed: Adjustable up to 60 m/minute
- Voltage: 110V/240V, 50/60Hz, 1ph. 60W
- Dimension: 850 x 640 x 400 mm
- Weight: Approx. 30 kg.
Option
Product counter with auto stop, pre-determined count and stop for quantity batching, index feeding, sensor feed or timer feeding, automatic collection conveyor, mounting bracket for ink jet printer.

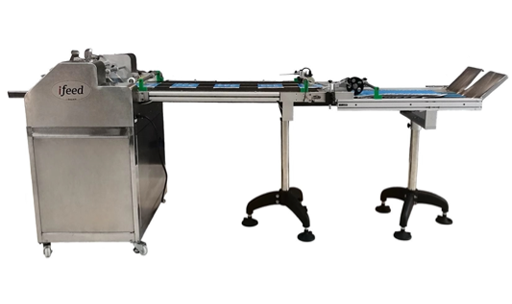

Stand Alone Model: TF02-400S
Specification
- Product dimension: Width 60 – 400 mm, Length 80 – 400 mm
- Product thickness: 0.10 – 10 mm
- Conveyor speed: Adjustable up to 120 m/minute
- Voltage: 110V/240V, 50/60Hz, 1ph. 90-120W
- Dimension: 2800 x 760 x 820 mm
- Weight: Approx. 80-150 kg
Option
Product cunter, double detection system, extended belt conveyor up to any length, extended loading table for feed length over 400mm, barcode reader, camera vision inspection, reject gate system, mounting bracket for ink jet printer, label applicator, hi-res inkjet printer / CIJ / TIJ / PIJ / CMYK inkjet printer.

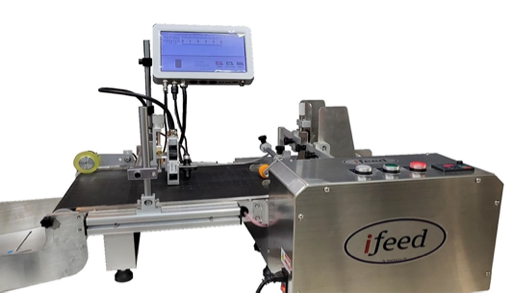

iFeed Imprinter 300S
Specification
- Product dimension: Width 80 – 300 mm, Length 100 – 300 mm
- Product thickness: 0.05 – 10 mm
- Conveyor speed: Adjustable up to 60 m/minute
- Print height: 12.7 mm (25.4 mm – option)
- Voltage: 110V/240V, 50/60Hz, 1ph.
- Dimension: 850(L) x 640(W) x 550(H) mm
- Weight: Approx. 40 kg
Option
Product counter with auto-stop, Automatic collectionconveyor.

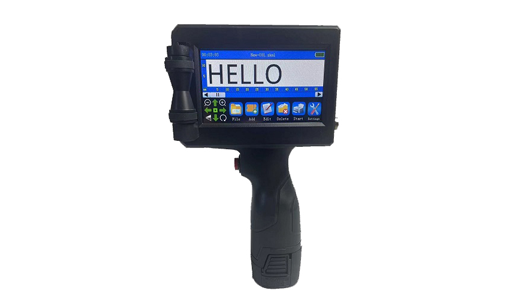

iFeed HandiJet G series
Specification
- System: TIJ 2.5
- Touch Screen: 4.5 inch
- External Interface: USB thumb drive
-
Languages: English, Chinese, Pinyin, Thai, Indonesia, Malaysia, Vietnam, Japan, Korea, Arabic, Turkey, France, German, Italy, Portugal, Nederland etc.
25 languages available - Print function: Text, date-time, counter, barcode, symbol, excel file, variable text-barcode, group printing etc.
- Print height: Up to 12.7mm
- Printing resolution: up to 600dpi
- Printing fonts: over 20 types
- Battery type: Rechargeable Li-ion 7.4V 2000mAh
- Printer weight: Approx. 900g including battery
