The Hicof AMAPLAN is a line of super compact flat carton serialization machines for intermittent and continuouss operation. High format flexibility with short chabgeover times are key advantages that are fulfilled. The machine is made in Switzerland and offers high production throughput while having low reject rates.
AMAPLAN-300
Flat Carton Serialization Machine
Serialization across whole enterprises is often limited due to space restrictions. For example, it could be impossible to extend existing packaging lines with serialization stations due to missing space. The AMAPLAN line of flat carton serialization machines allow to solve this issue by taking the marking operation off-line.
Hicof offers with the AMAPLAN the known innovative high-end quality specifically in box separation, box transport and verification system. The AMAPLAN-300 is a very compact Flat Carton Serialization Ma¬chine, offering up to 300 pcs/min marking performance with a wide variety of formats which allows to fulfil even demanding performance requirements easily.
The AMAPLAN is fully build and designed in Switzerland, offering highest quality standards. The machine does feature a separator which comes with a vacuum belt and a fully servo driven design. From there the products are fed through the machine with top and bottom guidance passing the printer and the Hicof Goldeneye camera. The camera can read and qualify the marking according ISO15415, OCR and OCV. After the marking the finished product is shingled on a output belt for dry¬ing of the marking and the easy pick-up by an operator. In case of a substandard marking the product is ejected mechanically to the rejection bin with pneumatic cylinders for reliable and safe operation. The machine features quick adjustments for all critical settings allowing to make a format change within less than 5 minutes. Finally, the AMAPLAN Flat Carton Serialization Machine features superior human safety features to avoid injury.
Hicof offers in combination with the AMACENA Software the ideal print solution for offline print jobs through the availability of the integrated management of the pre-printed folding boxes. This goes beyond the functionality of classical serialization softwares and allows effective offline production.
Hicof offers with the AMAPLAN the known innovative high-end quality specifically in box separation, box transport and verification system. The AMAPLAN-300 is a very compact Flat Carton Serialization Ma¬chine, offering up to 300 pcs/min marking performance with a wide variety of formats which allows to fulfil even demanding performance requirements easily.
The AMAPLAN is fully build and designed in Switzerland, offering highest quality standards. The machine does feature a separator which comes with a vacuum belt and a fully servo driven design. From there the products are fed through the machine with top and bottom guidance passing the printer and the Hicof Goldeneye camera. The camera can read and qualify the marking according ISO15415, OCR and OCV. After the marking the finished product is shingled on a output belt for dry¬ing of the marking and the easy pick-up by an operator. In case of a substandard marking the product is ejected mechanically to the rejection bin with pneumatic cylinders for reliable and safe operation. The machine features quick adjustments for all critical settings allowing to make a format change within less than 5 minutes. Finally, the AMAPLAN Flat Carton Serialization Machine features superior human safety features to avoid injury.
Hicof offers in combination with the AMACENA Software the ideal print solution for offline print jobs through the availability of the integrated management of the pre-printed folding boxes. This goes beyond the functionality of classical serialization softwares and allows effective offline production.
Superior Coding Quality
The AMAPLAN Flat Carton Serialization Machine delivers a very high coding quality due to the product transport system.The reason for this high coding quality is as follows:
- The product is reliably separated through multiple methods by the separator.
- Very controlled movement of the product as it is guided from all sides during the flow through the machine.
- The closed loop servo controlled movement is extremely precise in reproducing positions, speed and acceleration allowing a very constant product speed for ideal marking results (see image on the right).
- A shingling of the product at the output allows long drying times which avoid smear of the freshly marked boxes or flat cartons.
The AMAPLAN-300 Flat Carton Serialization Machine is offering superi¬or print and verification performance through it’s servo driven separator. This makes the AMAPLAN-300 the ideal machine for central marking operations of multiple packaging lines.
- Compact machine including print (up to 2 heads), Quality control camera (2 Mpix), Pharmacode Reader (option), Reject Station.
- Suited for demanding feeding operations (thin or light products, that stick to each other).
- Speed up to 300 pcs/minute.
- Space saving L Layout of the machine.
- Changeover time <2 Minutes.
AMAPLAN-B
Economic Flat Carton Serialization Machine

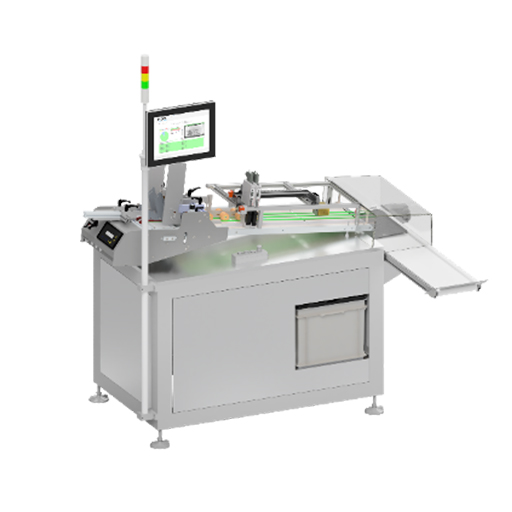

The Hicof AMAPLAN-B is a line of economic super compact flat carton serialization machines for continu¬ous operation. Economic design, high format flexibility with short changeover times are key advantages that are fulfilled. The machines are designed in Switzerland and offer high production throughput while having low reject rates.
Serialization across whole enterprises is often limited due to space restrictions and budgets. For example, it could be impossi¬ble to extend existing packaging lines with serialization stations due to missing space. The AMAPLAN-B line of flat carton serial¬ization machines allow to solve this issue by taking the marking operation off-line at an attractive price.
Hicof offers with the AMAPLAN-B an economic solution to feed flat cartons reliably to the printing and control positions. The AMAPLAN-B150 for example is offering up to 250 pcs/ min marking performance with a wide variety of formats which allows to fulfil even demanding performance require¬ments easily.
The AMAPLAN-B machines are assembled and designed in Switzerland, offering highest quality standards. The machines do feature a separator which feature reliable friction feeding mechanisms for care¬ful product transport. From there the prod¬ucts are fed through the machine, passing the printer and the Hicof Goldeneye camera. The camera can read and qualify the marking according ISO15415, OCR and OCV. After the marking the AMAPLAN-B150 shingles the finished product on an output belt for drying of the marking and the easy pick-up by an operator. In case of a substandard marking the product is ejected mechanically to the rejection bin with an innovative retractable rejection table for reli¬able and safe operation. Rejected products are caught on the re¬jection table and will be dropped to the reject bin. All AMAPLAN-B machines features quick adjustments for all critical settings allowing to make a format change within less than 5 minutes.
Hicof offers in combination with the AMACENA Software the ideal print solution for offline print jobs through the availability of the integrated management of the pre-printed folding boxes. This goes beyond the functionality of classical serialization softwares and allows effective offline production.
Serialization across whole enterprises is often limited due to space restrictions and budgets. For example, it could be impossi¬ble to extend existing packaging lines with serialization stations due to missing space. The AMAPLAN-B line of flat carton serial¬ization machines allow to solve this issue by taking the marking operation off-line at an attractive price.
Hicof offers with the AMAPLAN-B an economic solution to feed flat cartons reliably to the printing and control positions. The AMAPLAN-B150 for example is offering up to 250 pcs/ min marking performance with a wide variety of formats which allows to fulfil even demanding performance require¬ments easily.
The AMAPLAN-B machines are assembled and designed in Switzerland, offering highest quality standards. The machines do feature a separator which feature reliable friction feeding mechanisms for care¬ful product transport. From there the prod¬ucts are fed through the machine, passing the printer and the Hicof Goldeneye camera. The camera can read and qualify the marking according ISO15415, OCR and OCV. After the marking the AMAPLAN-B150 shingles the finished product on an output belt for drying of the marking and the easy pick-up by an operator. In case of a substandard marking the product is ejected mechanically to the rejection bin with an innovative retractable rejection table for reli¬able and safe operation. Rejected products are caught on the re¬jection table and will be dropped to the reject bin. All AMAPLAN-B machines features quick adjustments for all critical settings allowing to make a format change within less than 5 minutes.
Hicof offers in combination with the AMACENA Software the ideal print solution for offline print jobs through the availability of the integrated management of the pre-printed folding boxes. This goes beyond the functionality of classical serialization softwares and allows effective offline production.
AMAPLAN-B150
The AMAPLAN-B150 Flat Carton Seri¬alization Machine offers high-end print and verification performance through the friction feeder transport system and the automatic rejection.
This makes the AMAPLAN-B150 the ideal machine for central marking operations of multiple packaging lines.
- Machine including print (up to 2 heads), Quality control camera (2 Mpix), Pharmacode Reader (option).
- Space saving L Layout of the machine.
- Automatic Rejection system.
- Speed up to 250 pcs/minute (depending on product size).
- Shingle belt.
- Ideally suited for flat Pharma folding boxes.
- Machine ground area: 1900x780mm without conveyor.
AMAPLAN-B100
The AMAPLAN-B100 Flat Carton Serial¬ization Machine offers mid-range print and verification performance through the friction feeder transport system and the manual rejection.
This makes the AMAPLAN-B100 the ideal machine for central marking operations of multiple packaging lines.
- Machine including print (up to 2 heads), Quality control camera (2 Mpix), Pharmacode Reader (option).
- Automatic Rejection system.
- Speed up to 200 pcs/minute (depending on product size).
- Shingle belt.
- Ideally suited for flat Pharma folding boxes Machine ground area: 1900x780mm.
